  UNI-END CAPS is designed for sealing of power cable and telecommunication cable termination, cable termination, industrial pipe,conduits.
Also are suitable for protecting and insulation, water-proof of cable from humidity.
The cross-linked polyolefin tubing and inner wall is adhesive by hot-melt and polyamide.

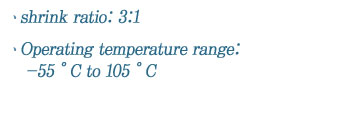

  ㆍshrink ratio: 3:1
ㆍOperating temperature range: -55˚C to 105˚C

  ㆍStandard color : Black
ㆍType : 1) without valve End caps 2) with valve End caps
ㆍOrdering description : specify product name, size, and color
  [ex.UNI-END CAPS 15.0MM Black]


Properties test methods values
Density ASTM D2671 1.1~1.2
Thermal Endurance IEC216 -55˚C~105C˚
Tensile Strength ASTM D2671 >12Mpa
Ultimate Elongation ASTM D2671 >400%
Accelerated ageing 168hrs at 136˚C ASTM D2671
Tensile strength >10Mp
Ultimate Elongation >300%
Low temperature flexibility 4hrs at -40˚c ASTM D2671 No craking
heat shock 4hrs at 200˚C ASTM D2671 no drop/no flow
Dielectric strength ASTM D2671 >18kv/mm
Volume resistivity ASTM D2671 >10¹⁴ Ω.cm
Water absorption ASTM D570 <0.5%


SIZE INSIDE DIAMETER WALL THICKNESS LENGTH REMARKS
as supplied after recovery Nominal total wall
after recovery		 mm
UNI 15/ 5 18.0mm 5.0mm 2.2mm

50mm

 -
UNI 22/ 9 23.0mm 9.0mm 2.5㎜ 60mm -
UNI 35/15 36.0mm 15.0㎜ 3.0㎜ 90mm -
UNI 55/25 57.0mm 25.0㎜ 3.5㎜ 120mm -
UNI 75/30 76.0mm 30.0㎜ 4.0㎜ 135mm -
UNI 95/40 100.0mm 40.0㎜ 4.5㎜ 150mm -
UNI 120/57 120.0mm 57.0㎜   155mm -
UNI 140/60 140.0mm 60.0㎜   180mm -
ㆍ 주문에 따라 표준규격外에 추가적으로 생산이 가능함.
