KUHS-MW is a designed for insulation and sealing
cable splices electrical connections,
jacket repairs and terminations.
It is suitable for submersible, direct-buried installations, or
wherever mechanical
protection is required in an electrical insulation system. |
| |
 |
| |

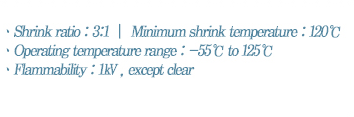

ㆍShrink ratio : 3:1
ㆍMinimum shrink temperature : 120℃
ㆍOperating temperature range : -55℃ to 105℃
ㆍNon-flame retardant : 1㎸ , except clear |
| |
 |
| |
ㆍStandard color : Black (*special colors are available upon
request)
ㆍStandard packaging : In 1.2meter[4foot lengths]
ㆍOrdering description : specify product name, size, and
color [ex. KUHS-MW 10/3 Black] |
| |
 |
| |
| |
Properties |
Test Methods |
Values |
|
Physical |
Unaged |
Tensile strength |
ASTM D412
ASTM D 2671 |
Min. 1.4kgf/㎟ |
|
Elongation |
Min. 350% |
|
Aged |
Tensile strength |
ASTM D 412
ASTM D 2671
158℃/168hrs |
Min. 1.2kgf/㎟ |
|
Elongation |
Min. 300% |
|
Low temperature flexibility |
ASTM D 2671 |
NO crack@-55℃X4hrs |
|
Heat shock |
ASTM D 2671 |
Pass@225℃X4hrs |
|
Thermal endurance |
IEC 60216 |
T1/120℃ |
|
Electrical |
Dielectric strength |
ASTM D 149 |
Min. 14㎸/㎜ |
|
Volume resistivity |
IEC 60093 |
Min 1X1013Ω-㎝ |
|
Chemical |
Water absorption |
ASTM D 570 |
Max0.1%@23℃X14days |
|
Resistance to Fungi |
ASTM G 21 |
Pass rating 1 |
Fluide resistance
Retention of Tensile strength
Retention of Elongation |
24hrs in ASTM NO.2 oil
Min. 75%
Min. 75% |
UL 224
ASTM D 149 |
|
| |
 |
| |
| SIZE |
INSIDE DIAMETER |
WALL THICKNESS |
STANDARD
LENGTH
(M) |
as
supplied
(NOM) |
after
recovery
(MAX) |
Minimum
Total wall
after heating |
| 10.0㎜ |
10.0㎜ |
3.0㎜ |
1.70㎜ |
1.2ｍ |
| 12.0㎜ |
12.5㎜ |
4.0㎜ |
2.00㎜ |
1.2ｍ |
| 16.0㎜ |
16.0㎜ |
5.0㎜ |
2.20㎜ |
1.2ｍ |
| 19.0㎜ |
19.0㎜ |
6.0㎜ |
2.50㎜ |
1.2ｍ |
| 25.0㎜ |
25.0㎜ |
8.0㎜ |
2.50㎜ |
1.2ｍ |
| 28.0㎜ |
28.0㎜ |
9.0㎜ |
2.50㎜ |
1.2ｍ |
| 33.0㎜ |
33.0㎜ |
11.0㎜ |
2.50㎜ |
1.2ｍ |
| 38.0㎜ |
38.0㎜ |
12.0㎜ |
2.50㎜ |
1.2ｍ |
| 50.0㎜ |
50.0㎜ |
16.0㎜ |
2.70㎜ |
1.2ｍ |
| 63.0㎜ |
63.0㎜ |
19.0㎜ |
2.80㎜ |
1.2ｍ |
| 75.0㎜ |
75.0㎜ |
22.0㎜ |
3.00㎜ |
1.2ｍ |
| 85.0㎜ |
85.0㎜ |
25.0㎜ |
3.00㎜ |
1.2ｍ |
| 95.0㎜ |
95.0㎜ |
25.0㎜ |
3.00㎜ |
1.2ｍ |
| 115.0㎜ |
115.0㎜ |
34.0㎜ |
3.00㎜ |
1.2ｍ |
| ㆍ Special order size are available upon
request |
|
 |
| |
|
