KUHS-225G-TW is highly flexible, flame-retardant,
thin-wall heat shrinkable Polyolefin tubing. it is designed for
providing space savings and rapid shrinking
Including electrically insulation & protection in-line
components, disconnect
Terminals, splices, and used for strain relief on high-density
connectors. |
| |
 |
| |

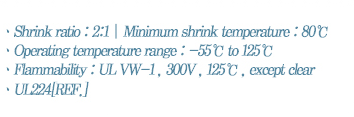

ㆍShrink ratio : 2:1
ㆍMinimum shrink temperature : 80℃
ㆍOperating temperature range : -55℃ to 125℃
ㆍFlammability : UL VW-1 , 300V , 125℃ , except clear
ㆍUL224[REF.] |
| |
 |
| |
ㆍStandard color : Black (*special colors are available upon
request)
ㆍStandard packaging : On spools
ㆍOrdering description : specify product name, size, and
color [ex. KUHS-225G-TW 3.0mm Black] |
| |
 |
| |
| |
Properties |
Test
Methods |
Values |
|
Physical |
Unaged |
Tensile strength |
ASTM D-412 |
Min. 1.1kgf/㎟ |
|
Elongation |
UL 224 |
Min. 200% |
|
Aged |
Tensile strength |
ASTM D 638
UL 224
158℃/168hrs |
Min. 0.8kgf/㎟ |
|
Elongation |
Min. 100% |
|
Heat shock |
UL 224 |
Pass@250℃X4hrs |
|
Low temperature flexibility |
ASTM D 2671 |
NO crack@-55℃X4hrs |
|
Secant modulus |
UL 224 |
Max.173MPa |
|
Electrical |
Dielectric strength |
UL 224 |
Min. 2500V/1min |
|
Volume resistivity |
ASTM D 257 |
Min 1X10¹⁴Ω-㎝ |
|
Chemical |
Copper corrosion |
UL 224
158℃/168hrs |
No corrosion |
|
Copper stability Elongation |
No sign of degradation
Min. 100% |
|
Flammability(VW-1) |
UL 224 |
Pass |
|
| |
 |
| |
|
SIZE |
INSIDE DIAMETER |
WALL THICKNESS |
STANDARD
LENGTH
(M) |
as
supplied
(MIN) |
after
recovery
(MAX) |
as
supplied
(NOM) |
after
recovery
(MIN) |
| 1.2㎜ |
1.4㎜ |
0.60㎜ |
0.10㎜ |
0.25㎜ |
200ｍ |
| 1.5㎜ |
2.0㎜ |
0.75㎜ |
0.10㎜ |
0.25㎜ |
200ｍ |
| 2.0㎜ |
2.5㎜ |
1.00㎜ |
0.15㎜ |
0.25㎜ |
100ｍ |
| 2.5㎜ |
3.0㎜ |
1.25㎜ |
0.15㎜ |
0.25㎜ |
| 3.0㎜ |
3.4㎜ |
1.50㎜ |
0.15㎜ |
0.25㎜ |
| 3.5㎜ |
3.9㎜ |
1.75㎜ |
0.15㎜ |
0.25㎜ |
| 4.0㎜ |
4.5㎜ |
2.0㎜ |
0.15㎜ |
0.25㎜ |
| 4.5㎜ |
5.0㎜ |
2.25㎜ |
0.15㎜ |
0.25㎜ |
| 5.0㎜ |
5.6㎜ |
2.50㎜ |
0.15㎜ |
0.25㎜ |
100ｍ |
| 6.0㎜ |
6.5㎜ |
3.00㎜ |
0.15㎜ |
0.28㎜ |
100ｍ |
| 7.0㎜ |
7.7㎜ |
3.50㎜ |
0.15㎜ |
0.28㎜ |
100ｍ |
| 8.0㎜ |
8.6㎜ |
4.00㎜ |
0.15㎜ |
0.28㎜ |
100ｍ |
| 9.0㎜ |
9.8㎜ |
4.50㎜ |
0.15㎜ |
0.28㎜ |
100ｍ |
| 10.0㎜ |
10.4㎜ |
5.00㎜ |
0.15㎜ |
0.28㎜ |
100ｍ |
| ㆍ Special order size are available upon
request
|
|
 |
| |
|
