KUHS-325G is designed for all general purpose
application such as the
Insulation and strain relief of electrical connection and
termination, light-duty
Harnessing, jacketing, bundling, and color coding of wires. few
sizes cover a wide
range of diameters, allowing reduced inventory and this tubing
accommodates
awkward, irregular shapes. |
| |
 |
| |

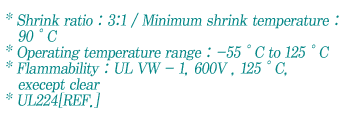

ㆍShrink ratio : 3:1
ㆍMinimum shrink temperature : 90℃
ㆍOperating temperature range : -55℃ to 125℃
ㆍFlammability : UL VW-1 , 600V , 125℃ , except clear
ㆍUL224[REF.] |
| |
 |
| |
ㆍStandard color : Black (*special colors are available upon
request)
ㆍStandard packaging : On spools
ㆍOrdering description : specify product name, size, and
color [ex. KUHS-325G 3.0mm Black] |
| |
 |
| |
| |
Properties |
Test Methods |
Values |
| |
Density |
ASTM D-792 |
Max. 1.40g/㎠ |
|
Physical |
Unaged |
Tensile strength |
ASTM D-638
MIL-I-23053 |
Min. 1.1kgf/㎟ |
|
Elongation |
Min. 200% |
|
Aged |
Tensile strength |
ASTM D 412
MIL-I-23053 175℃/168hrs |
Min. 0.8kgf/㎟ |
|
Elongation |
Min. 100% |
|
Heat shock |
MIL-I-23053 |
Pass@250℃X4hrs |
|
Low temperature flexibility |
MIL-I-23053 |
NO crack@-55℃X4hrs |
|
Secant modulus |
ASTM D-882 |
Max.173MPa |
|
Electrical |
Dielectric strength |
ASTM D-2671 |
Min. 19.7㎸/mm |
|
Volume resistivity |
ASTM D 876 |
Min 1X10¹⁴Ω-㎝ |
|
Chemical |
Fluid |
Tensile
strength |
MIL-I-23053
24℃/24hrs |
Min. 0.7kgf/㎟ |
|
resistance |
Dielectric strength |
Min. 15.8㎸/mm |
|
copper corrosion |
MIL-I-23053 |
NO corrosions |
| |
copper Mirror corrosion |
175℃/168hrs |
NO corrosions |
| |
Flammability(VW-1) |
UL 224 |
Pass |
| |
Fungus resistance |
ASTM G-21 |
NO growth |
|
| |
 |
| |
|
SIZE |
INSIDE DIAMETER |
WALL
THICKNESS |
STANDARD
LENGTH (M) |
as
supplied
(NOM) |
after recovery
(MAX) |
after recovery
(Nominal) |
| 3.0㎜ |
3.0㎜ |
1.0㎜ |
0.55㎜ |
100ｍ |
| 4.5㎜ |
4.5㎜ |
1.5㎜ |
0.55㎜ |
100ｍ |
| 6.0㎜ |
6.0㎜ |
2.0㎜ |
0.65㎜ |
100ｍ |
| 9.0㎜ |
9.0㎜ |
3.0㎜ |
0.75㎜ |
100ｍ |
| 12.0㎜ |
12.0㎜ |
4.0㎜ |
0.75㎜ |
100ｍ |
| 18.0㎜ |
18.0㎜ |
6.0㎜ |
0.80㎜ |
100ｍ |
| 24.0㎜ |
24.0㎜ |
8.0㎜ |
1.00㎜ |
100ｍ |
| 38.0㎜ |
38.0㎜ |
13.0㎜ |
1.15㎜ |
100ｍ |
ㆍ Special order size are available upon
request
ㆍ Wall thickness will be less if tubing recovery is
restricted during shrinkage |
|
 |
| |
|
