Wire Marker is designed for wire and cable identification Hologen free, flame-retardant, thin walled, flexible heatshrinkable polyolefin tubing to form a permanent insulation.
Tubing is suitable for underground railways, marine, military, aerospace application |
| |
 |
| |

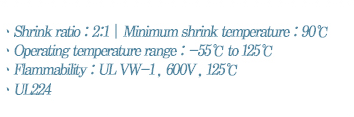

ㆍShrink ratio : 2:1
ㆍMinimum shrink temperature : 90℃
ㆍOperating temperature range : -55℃ to 125℃
ㆍFlammability : UL VW-1 , 600V , 125℃
ㆍUL224 |
| |
 |
| |
ㆍStandard color :White (*special colors are available upon
request)
ㆍStandard packaging : On spools
ㆍOrdering description : specify product name, size, and
color [ex. KUHS-225G 3.0mm White] |
| |
 |
| |
| |
Properties |
Test Methods |
Values |
|
Physical |
Unaged |
Tensile strength |
ASTM D-412 |
Min. 1.1kgf/㎟ |
|
Elongation |
UL 224 |
Min. 200% |
|
Aged |
Tensile strength |
ASTM D 412 UL
224 158℃/168hrs |
Min. 0.8kgf/㎟ |
|
Elongation |
Min. 100% |
|
Heat shock |
UL 224 |
Pass@250℃X4hrs |
|
Low temperature flexibility |
ASTM D 2671 |
NO crack@-55℃X4hrs |
|
Secant modulus |
UL 224 |
Max.173MPa |
|
Electrical |
Dielectric strength |
UL 224 |
Min. 2500V/1min |
|
Volume resistivity |
ASTM D 257 |
Min 1X10 ¹⁴Ω-㎝ |
|
Chemical |
Copper corrosion |
UL 224
158℃/168hrs |
No corrosion |
Copper stability
Elongation |
No sign of degradation
Min. 100% |
|
Flammability(VW-1) |
UL 224 |
Pass |
|
| |
 |
| |
|
SIZE |
As Supplied(mm) |
As Recovery(mm) |
Small Box
Packing
(PCS/Box) |
remark |
Inside
Diameter |
Wall
Thickness |
Inside
Diameter |
Wall
Thickness |
| 3mm |
3.4±0.2 |
0.18±0.05 |
1.5 |
0.40±0.10 |
1,000 |
|
| 4.5mm |
5.0±0.2 |
0.25±0.05 |
2.3 |
0.50±0.10 |
1,000 |
|
| 6.0mm |
6.5±0.3 |
0.28±0.05 |
3.0 |
0.55±0.10 |
500 |
|
| 9.0mm |
9.8±0.3 |
0.30±0.08 |
4.5 |
0.60±0.10 |
500 |
|
| 12.0mm |
12.5±0.3 |
0.50±0.10 |
6.0 |
0.60±0.10 |
500 |
|
| 18.0mm |
19.3±0.5 |
0.40±0.15 |
9.0 |
0.80±0.15 |
250 |
|
| 25.0mm |
25.5±0.5 |
0.50±0.15 |
12.5 |
0.90±0.15 |
250 |
|
| 38.0mm |
39.0±1.0 |
0.55±0.15 |
20.0 |
1.00±0.15 |
250 |
|
ㆍ Special order size are available upon
request
|
|
 |
 |
| |
|
|
|
|
