KUHS-225G-YG is a designed for all general purpose
application such as the
Insulation and strain relief of electrical connection and
termination, light-duty
Harnessing, bundling of wires and used to identify "ground"on
wires and in Cables. |
| |
 |
| |

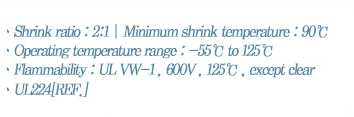

ㆍShrink ratio : 2:1
ㆍMinimum shrink temperature : 90℃
ㆍOperating temperature range : -55℃ to 125℃
ㆍFlammability : UL VW-1 , 600V , 125℃ , except clear
ㆍUL224 |
| |
 |
| |
ㆍStandard color : Yellow/Green stripe
ㆍStandard packaging : On spools
ㆍOrdering description : specify product name, size, and
color [ex. KUHS-225G-YG 3.0mm Yellow/Green] |
| |
 |
| |
| |
Properties |
Test Methods |
Values |
|
Physical |
Unaged |
Tensile strength |
ASTM D-412 |
Min. 1.1kgf/㎟ |
|
Elongation |
UL 224 |
Min. 200% |
|
Aged |
Tensile strength |
ASTM D 412
UL 224
158℃/168hrs |
Min. 0.8kgf/㎟ |
|
Elongation |
Min. 100% |
|
Heat shock |
UL 224 |
Pass@250℃X4hrs |
|
Low temperature flexibility |
ASTM D 2671 |
NO crack@-55℃X4hrs |
|
Secant modulus |
UL 224 |
Max.173MPa |
|
Electrical |
Dielectric strength |
UL 224 |
Min. 2500V/1min |
|
Volume resistivity |
ASTM D 257 |
Min 1X10¹⁴Ω-㎝ |
|
Chemical |
Copper corrosion |
UL 224
158℃/168hrs |
No corrosion |
Copper stability
Elongation |
No sign of degradation
Min. 100% |
|
Flammability(VW-1) |
UL 224 |
Pass |
|
| |
 |
| |
|
SIZE |
INSIDE DIAMETER |
WALL THICKNESS |
STANDARD
LENGTH(M) |
as
supplied
(AVERAGE) |
after
recovery
(MAX) |
as
supplied
(NOM) |
after
recovery
(MIN) |
| 3.0㎜ |
3.4㎜ |
1.50㎜ |
0.25㎜ |
0.51㎜ |
100ｍ |
| 6.0㎜ |
6.5㎜ |
3.00㎜ |
0.25㎜ |
0.58㎜ |
100ｍ |
| 9.0㎜ |
9.8㎜ |
4.50㎜ |
0.25㎜ |
0.64㎜ |
100ｍ |
| 12.0㎜ |
12.5㎜ |
6.00㎜ |
0.25㎜ |
0.64㎜ |
100ｍ |
| 16.0㎜ |
16.7㎜ |
8.00㎜ |
0.3㎜ |
0.68㎜ |
50ｍ |
| 18.0㎜ |
19.3㎜ |
9.00㎜ |
0.35㎜ |
0.76㎜ |
50ｍ |
| 25.0㎜ |
25.5㎜ |
12.5㎜ |
0.45㎜ |
0.89㎜ |
50ｍ |
| 38.0㎜ |
39.0㎜ |
19.0㎜ |
0.50㎜ |
1.00㎜ |
30ｍ |
| ㆍ Special order size are available upon
request
|
|
 |
| |
|
